From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s Tiagra…
£1,699
V12 Finance·Klarna·PayPal
Colour
Choose Your Size
Product code: BCGRALG24720D

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s Tiagra groupset for reliable 10-speed shifting, durable DT Swiss G 1800 alloy wheels, and 40mm Schwalbe G-One Allround tyres. Finished with a Selle Italia Model X saddle, its built for big rides, rough roads and everything in between.

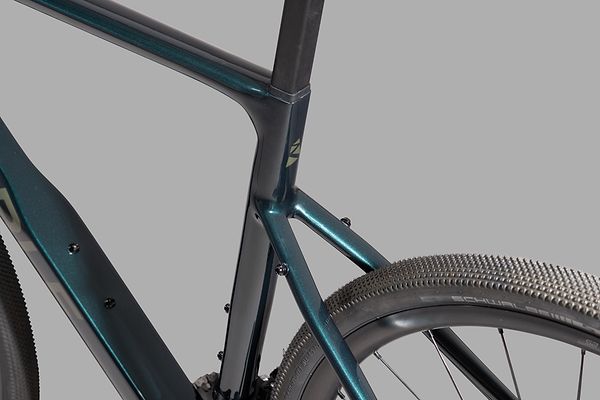

Frameset

Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike, bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays razor sharp.

Frameset

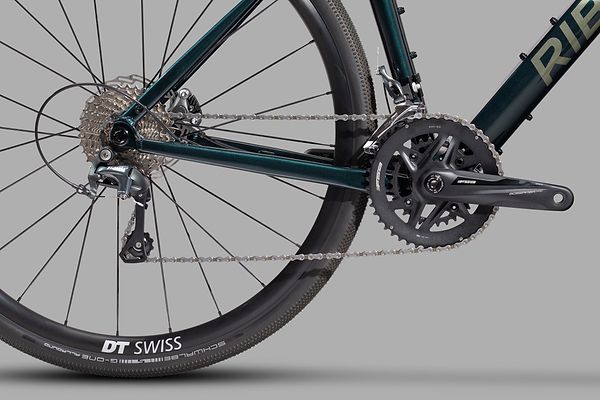

Groupset

Tiagra delivers impressive entry-level performance, featuring cascaded technology from Shimano’s top-tier groupsets. The smooth, reliable shifting of the 2x10-speed Tiagra drivetrain offers consistent year-round performance, inspiring everyday riders to take on new challenges as their cycling journey evolves. Confident braking comes courtesy of hydraulic disc brakes, while the addition of the FSA Gossamer chainset ensures efficient power transfer and dependable performance on every ride.

Groupset

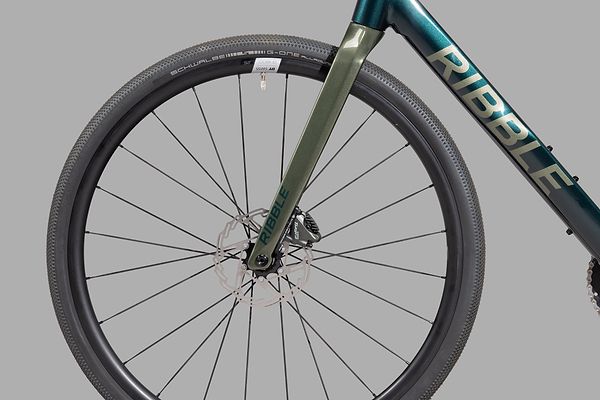

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke, whether you’re heading out for an hour or all day.

Handlebars

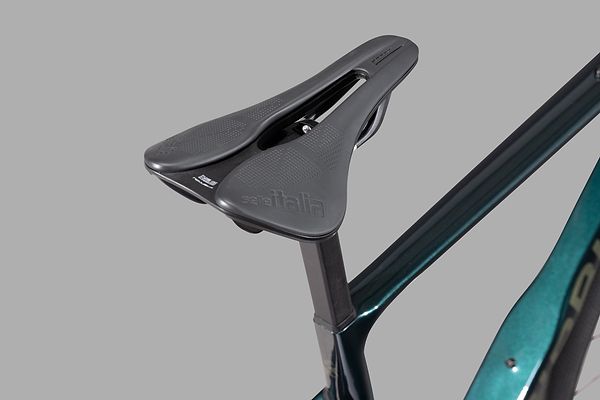

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.

Saddle

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

  • 5'3 - 5'7

    159 - 169cm

  • 5'6 - 5'9

    167 - 176cm

  • 5'9 - 5'11

    174 - 181cm

  • 5'10 - 6'1

    179 - 186cm

  • 6'0 - 6'4

    184 - 193cm

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • AGX+ Gossamer Pro Chainset 165mm 46-30T
    • CGR AL Carbon Fork Green
    • CGR AL G2 Frame C01 XSM 47cm
    • CN-HG54 10spd Chain 116 Links
    • CS-HG500 10spd Cassette HG 11-34T
    • Centre Lock Rotor Lockring
    • Chainstay Protector
    • D-Shaped Alloy Seatpost - 350mm
    • D-Shaped Rubber Seat Clamp Cover
    • Disc Brake Adapter Rear 160mm Flat to Flat
    • Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
    • Disc Caliper Bolt Black 27mm
    • Embossed Black Bar Tape
    • FD-R4700 Tiagra Front Derailleur Braze On
    • Front Mech Clamp 34.9mm
    • Inline Cable Adjuster 5mm
    • Jagwire LEX-SL Gear Cable Outer - Black 1m
    • M3 6mm Hex 2 Countersunk Black
    • M40417 1.75mm Freehub Spacer
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • MY24/25 Front Thru Axle
    • MY25 Alloy UDH Rear Thru Axle
    • MY25 Ti/AL Seatpost Wedge Kit
    • Plastic Shift Cable Housing Ferrule 4.2mm
    • RD-4700 Tiagra Medium Cage Rear Derailleur
    • Rubber Circular Bung - 10mm Domehead 8mm Post
    • ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH
    • ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
    • Short Door - Ti Alloy - Single Hole Without Stop
    • T47 85.5mm Shimano 24mm Threaded Bottom Bracket
    • Tektro CL Rotor 160mm
    • Thru Axle Lever
    • Universal Derailleur Hanger
    • Warning sticker sheet Torques to be applied at PDI

  • Wheelset

    • G-One Allround RaceGuard Folding Tyre Black 700x40mm
    • G1800 Disc Front Wheel 700c CL
    • G1800 Disc Rear Wheel 700c CL HG
    • Inner Tube SV17 700x28/47 Presta 40mm

  • Handlebar

    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • Level Alloy Handlebar
    • Plastic Compression Spider 42mm 0.0mm Offset
    • R457B Headset Bearing
    • RS Spacer 10mm
    • RS Spacer 5mm
    • RS-2 Round Headset Bearing Cover for AL
    • RS-2 Standard Cable Guide

  • Saddle

    • Selle Italia Model X Light FeC Saddle

Frequently asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.

  • Tiagra build: 10.4 kg
  • 105 build: 10.0 kg
  • SPORTFIT: 9.8 kg
  • Frame only (medium): 1700 g

The CGR AL includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The CGR AL SPORTFIT offers the same ride and versatility, but with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, designed for control, comfort and all kinds of riding.

The CGR AL features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The CGR AL comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can attach a rear pannier rack using the built-in frame mounts to boost carrying capacity by up to 15 kg.

No, it is not approved for use with child safety seats.

Yes. A removable mudguard bridge makes fitting mudguards easy (kit sold separately).

The CGR AL uses a threaded 85.5 mm T47 bottom bracket.

The CGR AL features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The CGR AL uses a proprietary D-shaped alloy seatpost with 10 mm setback, and compatible with carbon or alloy saddle rails.

Yes. The CGR AL has two bottle cage mounts, one on the downtube and one on the seat tube. Both are ideally placed to make the most of Ribble aero bottle cages, giving you easy access to your bottles while keeping things clean and streamlined on the bike.

Thru-axles.

The CGR AL uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.

The maximum recommended system weight for the CGR AL is 120 kg, including bike, rider and luggage.

The CGR AL comes with a 46-30T FSA chainset and doesn’t fit larger 50-34T road compacts.

Pedals aren’t included, so you can choose the ones that suit your riding style.
