Description
From commutes to gravel rides and Sunday loops, the CGR AL SPORTFIT delivers a more upright and confident position for mixed-terrain rides. It pairs a 7005-series hydroformed aluminium frame with flat bars for extra comfort and control, a wide range SRAM Apex XPLR groupset, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Model X saddle, it puts you in charge, whatever your ride.

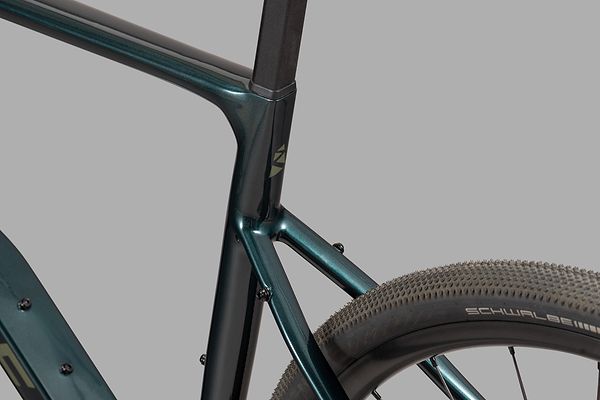

Frameset
Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike, bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays sharp.

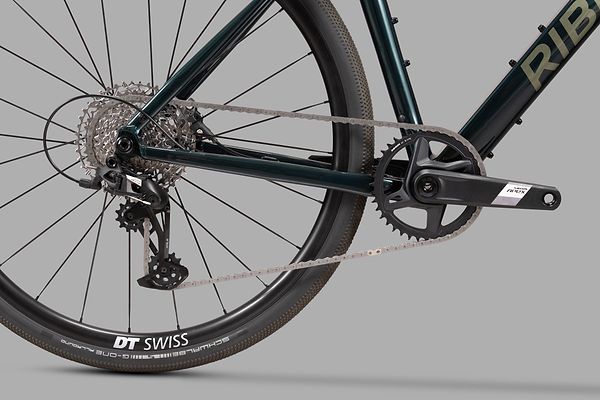

Groupset
When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

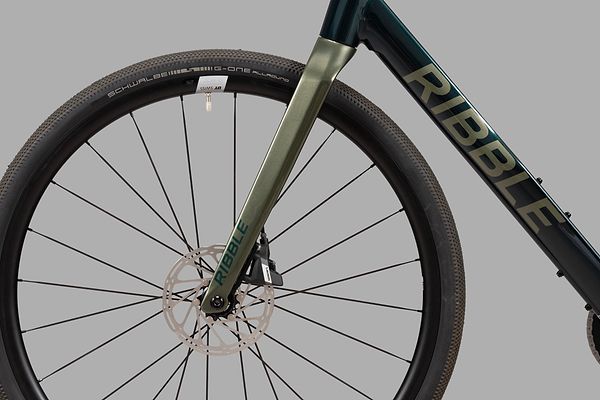

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

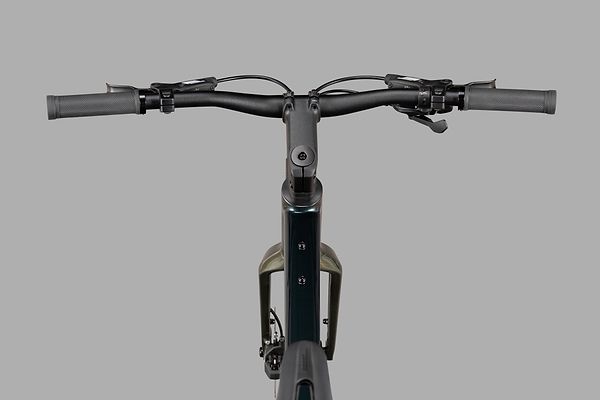

Handlebars
Flat bars put you in a relaxed, upright position so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel, and everything in between.

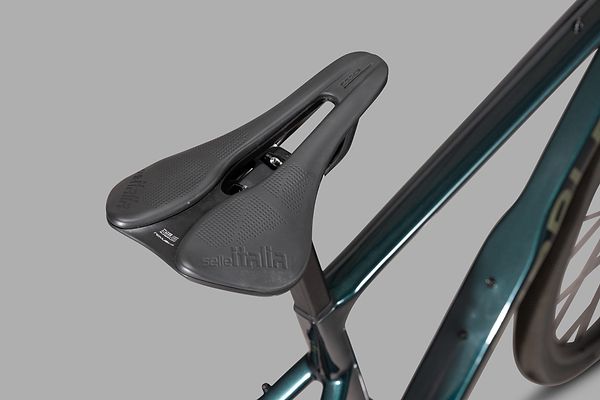

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Alloy Riser Flat Bar Black 66cm
- Alloy Riser Stem 90mm
- Alloy Shift Cable Housing Ferrule Black 4.2mm
- Apex 1 DUB Wide Crankset 165mm 40T
- Apex Flattop 12spd Chain 120 Links
- Apex XPLR Rear Derailleur
- CGR AL Carbon Fork Green
- CGR AL G2 Frame C01 XSM 47cm
- Centre Lock Rotor Lockring
- Centreline CL Rotor 160mm
- Chainstay Protector
- Compression Bushing Fits Stealth-a-Majig System AL
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- DB-S300-A1 Brake Lever & Caliper LH 1900mm
- DB-S300-A1 Brake Lever & Caliper RH 950mm
- DUB T47 85.5mm Road WIDE Bottom Bracket
- Disc Caliper Bolt Black 27mm
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Headset Bearing Cover for Urban Riser Stem
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 6mm Hex 2 Countersunk Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- MY25 Alloy UDH Rear Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- Needle Insert Fits Stealth-a-Majig System SS
- PG1231 XPLR Cassette HG 11-44T
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- Rubber Circular Bung - 10mm Domehead 8mm Post
- Rubberised Bar Grips Black
- SX Eagle Trigger Shifter 12spd RH
- Short Door - Ti Alloy - Single Hole Without Stop
- Starter Kit Black One Size
- Thru Axle Lever
- Universal Derailleur Hanger
- Urban Riser Stem Spacer - 10mm
- Urban Riser Stem Spacer - 15mm
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Saddle
- Selle Italia Model X Light FeC Saddle
Frequently asked Questions
If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Tiagra build: 10.4 kg
- 105 build: 10.0 kg
- SPORTFIT: 9.8 kg
- Frame only (medium): 1700 g
The CGR AL SPORTFIT includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.
The CGR AL SPORTFIT features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.
The CGR AL SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.
Yes, you can attach a rear pannier rack using the built-in frame mounts to increase carrying capacity by up to 15 kg.
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridge makes fitting mudguards easy (kit sold separately).
The CGR AL uses a threaded 85.5 mm T47 bottom bracket.
The CGR AL SPORTFIT features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.
The CGR AL uses a proprietary D-shaped alloy seatpost with 10 mm setback, and compatible with carbon or alloy saddle rails.
Yes. The CGR AL has two bottle cage mounts, one on the downtube and one on the seat tube. Both are ideally placed to make the most of Ribble aero bottle cages, giving you easy access to your bottles while keeping things clean and streamlined on the bike.
Thru-axles.
- Front: M12 x 1.5 mm x 123mm
- Rear: M12 x 1.0 mm x 167.5mm
The CGR AL uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
The maximum recommended system weight for the CGR AL SPORTFIT is 120 kg, including bike, rider, and luggage.
While equipped with a 1x drivetrain, the CGR AL SPORTFIT supports a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T or 30T/46T).
Yes, the bike comes with a set of flat platform pedals for general use.
