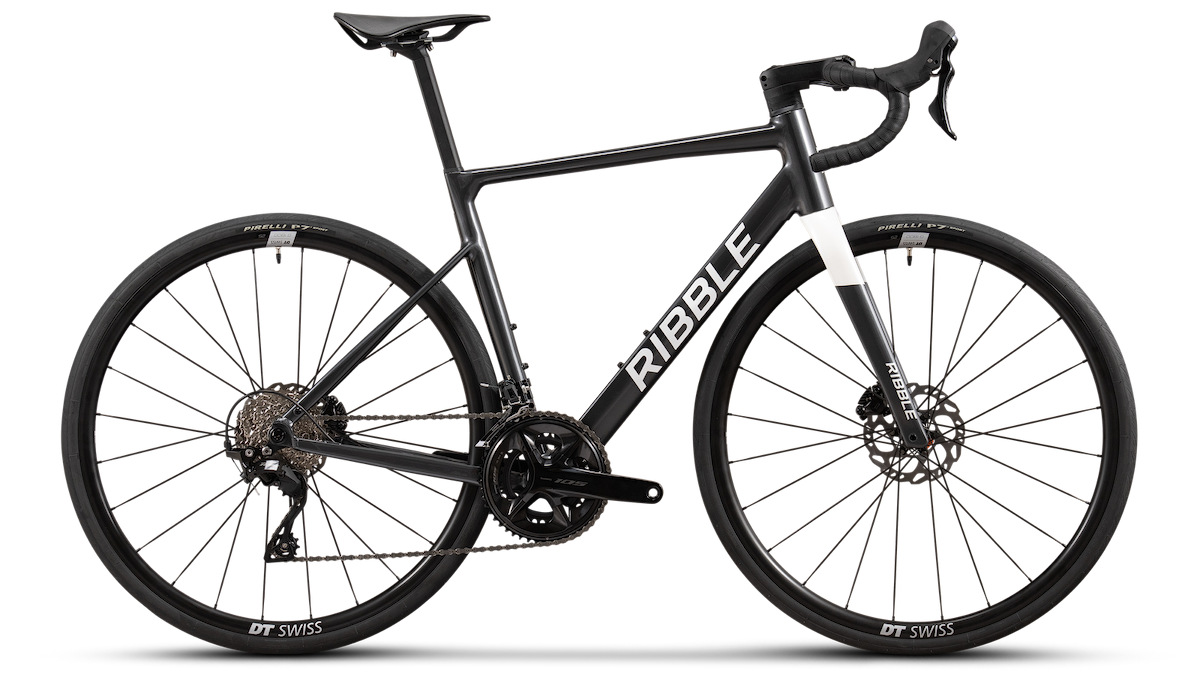

Description
ALLROAD AL is built for riders who want one road bike that can do it all. From long climbs and daily commutes to weekend epics. The 7005 aluminium frame is light, fast and tough. Matched with Shimano’s 105 mechanical groupset for slick and precise 12-speed shifting, DT Swiss G 1800 alloy wheels for all-road dependability and grippy Pirelli P7 tyres. Finished with a unisex Selle Italia Model X saddle, it's a setup designed to go the distance in comfort and with lasting durability.
Frameset
Crafted from upgraded 7005-series aluminium, the ALLROAD AL frameset is both lighter and stronger than previous generations, delivering durability without compromise. Hydroformed tubing retains the sleek, aerodynamic profile of our flagship ALLROAD SL R carbon model, offering wind-cheating efficiency in a more accessible platform. Internal cable routing ensures a clean, modern aesthetic and is fully compatible with integrated cockpit systems for next-level integration. A robust T47 bottom bracket enhances drivetrain stiffness while simplifying internal cable routing, giving you responsive handling and smooth power transfer.
Groupset
Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.
Wheelset
Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with the ultimate all-round training tyre, the Pirelli P7 Sport offers improved durability and confident all-condition control for both road racers and everyday riders.
Handlebars
Ribble alloy handlebars are designed with everyday riders in mind, offering a compact shape with a shorter drop and reach for easy, natural transitions between the tops, hoods, and drops. The ergonomic profile helps reduce strain and promotes all-day comfort, letting you find your ideal riding position with minimal adjustment. Paired with a matching alloy stem and wrapped in plush bar tape, they deliver a confident, comfortable feel on every ride, whether it's a quick spin or a full day in the saddle.
Saddle
The lightweight D-shaped alloy seat post offers the perfect blend of strength and low weight, with a two-bolt design for easy saddle adjustment. It’s paired with the unisex Selle Italia Model X saddle, featuring gel padding, and a Superflow cutout for enhanced comfort on longer rides.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'6
160 - 168cm
5'6 - 5'9
168 - 175cm
5'9 - 5'11
175 - 180cm
5'11 - 6'1
180 - 185cm
6'1 - 6'4
185 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Allroad AL Carbon Fork Anthracite
- Allroad AL Frame Anthracite XSM 45cm
- CN-M7100 SLX 12spd Chain 126 Links
- CS-HG710 12spd Cassette HG 11-36T
- Chainstay Protector
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm
- Embossed Black Bar Tape
- FC-R7100 105 12spd Chainset 165mm 50-34T
- FD-R7100 105 12spd Front Derailleur Braze On
- Front Mech Clamp 34.9mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 6mm Hex 2 Countersunk Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- MY25 Alloy UDH Rear Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-R7100 105 12spd Rear Derailleur
- RT-CL700 SI Rotor with Lockring 160mm
- Rubber Circular Bung - 10mm Domehead 8mm Post
- ST-R7120 105 STI Lever & BR-R7170 Caliper 12spd RH
- ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole Without Stop
- T47 85.5mm Shimano 24mm Threaded Bottom Bracket
- Thru Axle Lever
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
- P7 Sport Tyre Black 700x32mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Round Headset Bearing Cover for AL
- RS-2 Standard Cable Guide
Saddle
- Model X Superflow Saddle
Frequently Asked Questions
If you're between sizes, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Tiagra build: 10.2 kg
- 105 build: 9.8 kg
- Frame only (medium): 1650 g
The ALLROAD AL includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.
The ALLROAD AL features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.
The ALLROAD AL comes equipped with fast-rolling, grippy 32 mm tyres and offers clearance for up to 38 mm (or 35 mm with mudguards).
Yes, our removable pannier rack adaptor kit makes it easy to attach a rear pannier, providing a practical solution for carrying your gear (rack adaptor kit sold separately).
Yes. A removable mudguard bridge kit makes fitting mudguards easy with tyres up to 35mm (kit sold separately). We also offer a combined mudguard and rack mounting kit for anyone looking to fit both.
The frame accepts an 85.5mm T47 threaded bottom bracket.
The ALLROAD AL features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.
The ALLROAD AL comes with a proprietary 350 mm D-shaped alloy seat post, with a 10 mm setback, and is compatible with both carbon and alloy saddle rails.
The ALLROAD AL includes two bottle cage mounts on the seat tube and downtube, compatible with Ribble aero bottle cages.
Thru Axles:
- Front: M12 x 1.5 mm x 123mm
- Rear: M12 x 1.0 mm x 167.5mm
The ALLROAD AL uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
The maximum recommended system weight for the ALLROAD AL is 120 kg, including bike, rider, and luggage.
No. Pedals aren’t included as riders use different systems. You can, however, choose from a range of best-selling pedals when configuring your bike.
