Description
The ALLGRIT E CARBON-X is the lightest and most refined electric gravel bike in the range, weighing just 12.2 kg. Built for riders who want the speed, feel, and responsiveness of a top-tier carbon frame, with power that’s there when you need it and invisible when you don’t. At its core is a lightweight, aero-optimised carbon frameset paired with SRAM Force XPLR AXS E1, delivering crisp, wireless shifting and gravel-tuned efficiency. Tough Mavic Allroad wheels, grippy 45mm Schwalbe G-One tyres, and a Selle Italia Model X saddle round out this premium build—perfectly equipped for speed, comfort, and all-terrain versatility.

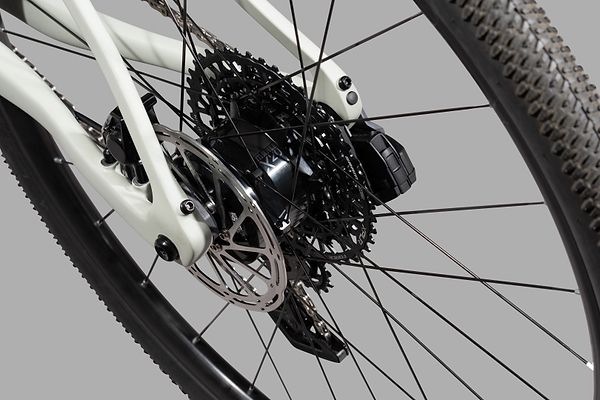

Electric Motor System
The Mahle X20 system delivers intuitive, lightweight assistance that adapts seamlessly to your ride. Whisper-quiet and virtually invisible, it provides up to 140 km of range on a single charge, or 200 km with the optional range extender. With up to 65Nm of torque and a larger 350Wh battery, it offers smooth, natural power that excels on steep climbs and varied terrain. The system can even be tailored to respond to inputs like heart rate, making it the perfect training partner whether you're building endurance or returning from injury.

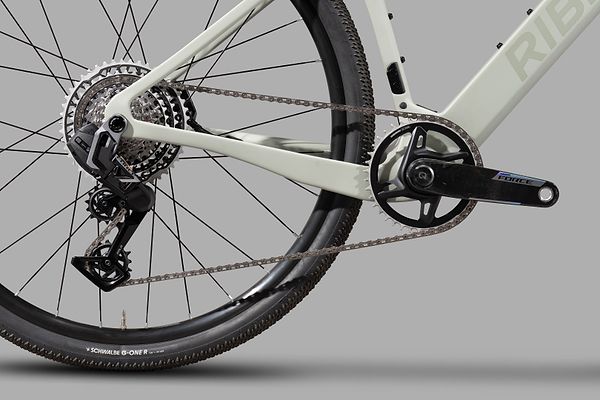

Groupset
Force XPLR AXS E1 is made for gravel riders who go hard and demand more. With a wide-range 13-speed 10-46T cassette, advanced Full Mount derailleur, and refined chain control, it delivers lightning-fast, reliable shifts—no matter how rough, steep, or unpredictable the trail. Lightweight and resilient, it’s built to handle full-gas efforts and back-to-back big days without missing a beat. This is wireless performance, tuned for the wild.

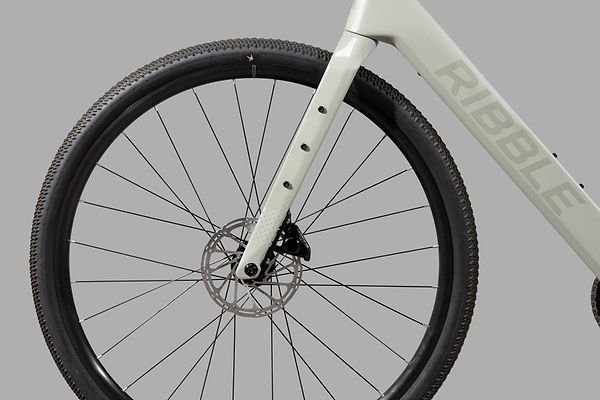

Wheelset
Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X20 motor. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability—ideal for riders who push the boundaries across varied and demanding surfaces.

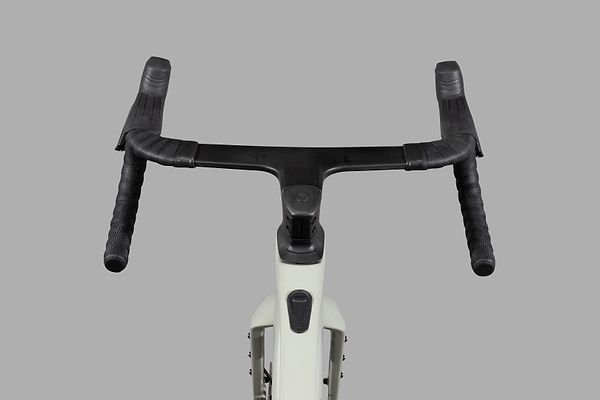

Handlebars
Precision-engineered from high-grade carbon, the Ribble Aero Gravel integrated handlebars combine race-ready stiffness with a streamlined aero profile to reduce drag and enhance efficiency. Flared drops provide added stability and control over rough terrain, while ergonomic shaping ensures all-day comfort. Fully integrated cable routing completes the sleek, cable-free aesthetic.

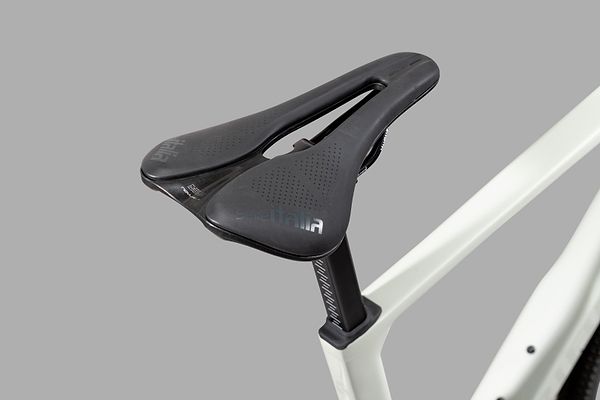

Saddle
Stay stable and comfortable over rough terrain—our integrated seat post clamp, combined with a proprietary D-shaped carbon seat post and the Selle Italia Model X saddle, delivers excellent rear-end compliance and effectively reduces trail chatter for all-day comfort.

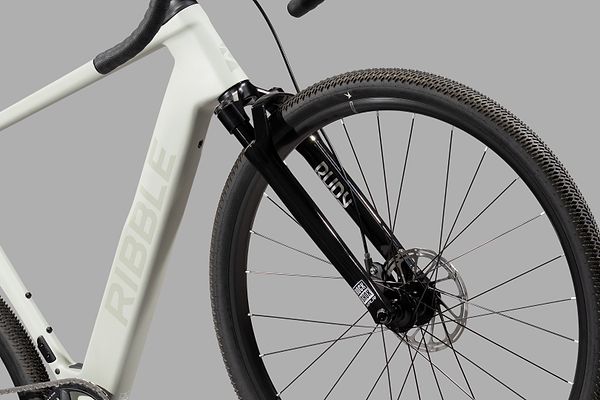

Suspension Fork Upgrade
When the gravel turns rough and the terrain gets technical, the RockShox Rudy Ultimate fork steps in to smooth out the ride. Available as an upgrade on the Ribble ALLGRIT E CARBON-X, this premium suspension fork is purpose-built for gravel racing—offering up to 30mm of travel for improved comfort, control, and confidence. Whether you're carving through gravel or hammering down technical descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and in total command.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Active Charger 4A (with wall mount)
- Active Charging Point 6 Pin
- Allgrit / CGR E Carbon-X BB Battery Cover
- Allgrit E Carbon-X Frame Sandstone XSM 47cm
- Blanking Door Alloy
- Carbon D-Shaped Inline Seatpost Matt Black - 280mm
- Centreline Rotor 6-Bolt Steel Bolts 160mm
- Chainstay Protector
- Charger Wire For UK
- Compression Bushing Fits Stealth-a-Majig System AL
- Disc Caliper Bolt Black 27mm
- Embossed Black Bar Tape
- Force AXS E1 Shift Lever & Caliper LH
- Force AXS E1 Shift Lever & Caliper RH
- Force E1 Flattop 12/13spd Chain 120 Links
- Force XPLR AXS E1 PM DUB Wide Crankset 165mm 40T
- Force XPLR AXS E1 Rear Derailleur
- Force XPLR XG-1371 Cassette 10-46T
- G2 SLR SLRE Front Mech Blanking Plate
- IWOC One Head Unit - Std
- Integrated Seatpost Wedge
- M3 10mm Hex 2 Countersunk P0.5 SSA2
- M3 12mm T10 Countersunk P0.5 Black
- M4 12mm Hex 3 Domehead P0.7 SSA2
- M5 12mm Hex 2.5 Grub P0.8 Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 Black
- M5 16mm Hex 3 Countersunk P0.8 Black
- M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
- MY24/25 Carbon Rubber Seat Clamp Cover
- MY24/25 Carbon UDH Rear Thru Axle
- Needle Insert Fits Stealth-a-Majig System SS
- Open Hose Door Oval Plastic
- Powerpack 1 Battery & Charger (cable not included)
- Rubber Circular Bung - 10mm Domehead 8mm Post
- SRAM DUB Wide Adapter Set for PF46-30 (6 PCS)
- Seatpost Wedge Nut
- Seatpost Wedge Plug
- Thru Axle Lever
- Warning sticker sheet Torques to be applied at PDI
- X20 Dropout Drive Unit Connection Battery Motor
- X20 TCS PF46-30 Bottom Bracket
- X20 iX3+ Battery Pack
- X20-30 Quick Guide
Fork
- Allgrit E Carbon-X Carbon Fork Sandstone
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- R457B Headset Bearing
Wheelset
- Allroad 1 Mahle 6-Bolt Front Wheel
- Allroad 1 Mahle X20 GEN2 Rear Wheel 700c 6B
- G-One R Performance RaceGuard TLR Tyre BLK 700x45mm
- Inner Tube SV17 700x28/47 Presta 40mm
- X20 Drive Unit Freewheel & Nut SRAM XDR GEN 2
Handlebar
- Aero Gravel Carbon INT Bar & Stem 38-43cm x 80mm
- Flat Washer 1mm x M5 x 9mm SSA2
- Logo Top Cap Bung
- M6 45mm Hex Countersunk P1.0 SSA2 Black
- Plastic Compression Spider 42mm ID +1.0
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Selle Italia Model X Light FeC Saddle
If you're between sizes on the ALLGRIT E CARBON-X, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Apex XPLR AXS build: 12.4 kg (carbon forks) / 13.1 kg (RockShox Rudy Ultimate)
- Rival XPLR AXS build: 12.3 kg (carbon forks) / 13.0 kg (RockShox Rudy Ultimate)
- Force XPLR AXS build: 12.2 kg (carbon forks) / 12.9 kg (RockShox Rudy Ultimate)
- SPORTFIT build: 12.1kg (carbon forks) / 12.8 kg (RockShox Rudy Ultimate)
- Frame only (medium): 920 g
Like all Ribble bikes, the ALLGRIT E CARBON-X is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components including 3rd party suspension forks.
Yes. The ALLGRIT E CARBON-X available with the optional RockShox Rudy Ultimate suspension fork. This upgrade improves comfort and control on rougher gravel trails, helping you stay fast and confident when the terrain gets technical.
Typical range is up to 140km for a 90kg rider over mixed terrain. A 60km range extender is available for longer rides.
Yes. Like all Ribble e-bikes, the ALLGRIT E CARBON-X is pedal-assisted and requires rider input at all times.
No. The ALLGRIT E CARBON-X only provides power when you pedal. You remain in full control, with the motor assisting based on your chosen power level.
No. The ALLGRIT E CARBON-X is a pedal-assisted electric bike, so there’s no need for a licence, insurance or road tax. Optional bike insurance is still a good idea.
Yes. Most schemes now allow higher-value bikes, including e-bikes. Check your employer’s limits before ordering.
Press the main button to cycle through assist levels:
- White: off
- Green: minimum
- Orange: medium
- Purple: maximum
- Cyan: smart assist via app
Battery status is shown on the 7 LED display.
- Fully lit = 94–100%
- Fewer lights = lower charge
- Slow blinking = 0-10%
- Fast blinking: critically low (0–5%)
Plug into any standard socket using the charger provided. A range extender can also top up the main battery when a socket isn’t nearby.
Yes. You can test ride the ALLGRIT E CARBON-X at our Clitheroe showroom. Please check availability in advance.
Yes. The ALLGRIT E CARBON-X features IP54-rated electronics. They’re splashproof but not waterproof—avoid submerging or pressure washing. Use a waterproof cover when transporting the bike.
The battery is internal. A MAHLE-certified technician can remove it via the bottom bracket shell if needed.
The MAHLE iX3 battery can provide up to 500 full charge cycles with minimal degradation, when maintained correctly. See our battery care guide for tips.
Yes. The ALLGRIT E CARBON-X features fully internal cable routing for clean aesthetics and added protection.
Supplied with 45mm gravel tyres. Frame clearance is up to 50mm, or 45mm with mudguards. The fork fits a 700x53c (29x2.1") MTB tyre.
Yes. A pannier rack adaptor kit is available separately to attach a rear rack, boosting carrying capacity by up to 15 kg.
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridge kit makes fitting mudguards easy. We also offer a combined mudguard and rack adaptor kit for anyone looking to fit both. (kits sold separately).
It uses a proprietary D-shaped carbon seatpost with integrated wedge clamp. Available in inline or setback options and two lengths, making it easy to dial in the right fit across different frame sizes (recommended lengths are XS-S: 280mm, M-XL: 330mm).
A MAHLE-specific PF46 bottom bracket with built-in torque sensor.
It uses 1.5" integrated headset bearings – size R457B 52x42x7mm (45°x45°) top and bottom.
Two: one on the downtube and one on the seat tube, positioned to work with Ribble aero bottle cages.
There are mounts on the top tube, underside of the downtube and carryall mounts on the fork legs.
The ALLGRIT E CARBON-X uses the following axles:
- Front: M12 x 1.5 mm x 123mm
- Rear: M12 x 1.5mm x 174 mm
Yes. While the ALLGRIT E CARBON-X comes with a 1x drivetrain, it can also accommodate a braze-on front derailleur using an optional derailleur hanger (sold separately) and 2x gravel chainsets (30/46T or 31/48T).
The ULTRA-GRIT uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
Yes. The maximum system weight (bike, rider and luggage) is 120kg.
The ALLGRIT E CARBON-X is designed for flat-mount disc brakes.
No. Pedals are not included to allow for personal choice. You can add a set during checkout.
