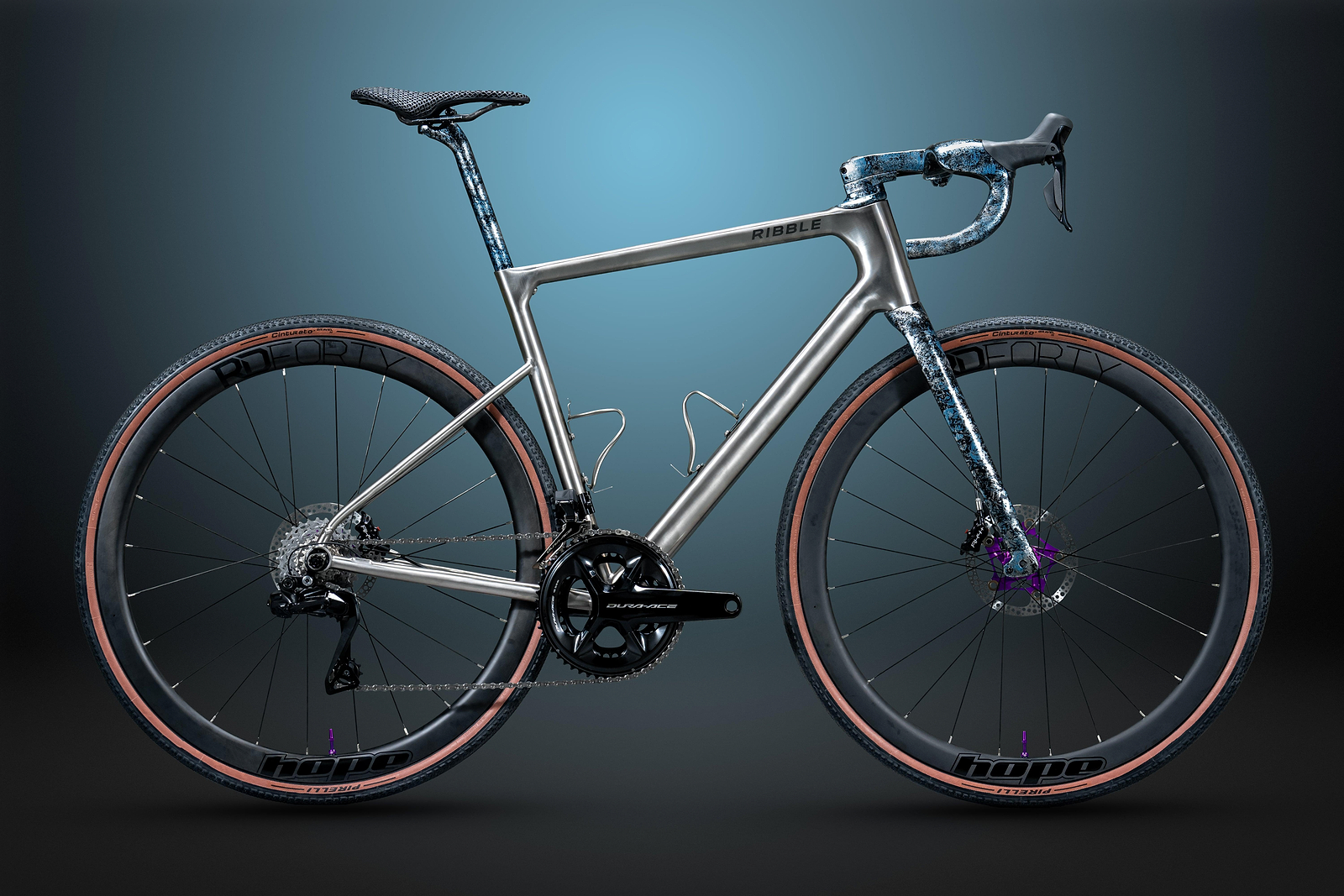

The all-new Allroad is a 3Al/2.5V prototype titanium frame takes innovation to the next level, utilising additive manufacturing to create the head-tube and seat-tube clusters. This process was specifically chosen to further enhance the design, optimise aerodynamics, and to facilitate internal cable routing, an integrated seat clamp and tailored tube profiles. Furthermore, it provides the ability to create tube shapes with a high strength-to-weight ratio, and better able to cope with multi-directional loads while allowing material to be precisely place to deal with specific stresses. This is contrary to more traditional methods like CNC milling, where material is removed and where access to more intricate areas is restricted - unlike a 3D printer.

SPECIFICATIONS:

• Frame & Fork: 3Al/2.5V Titanium frame using additive manufactured head-tube and seat-tube clusters, paired with a full carbon fork.
• Cockpit: Ribble RS-2 Prototype stem paired with Ribble UB-2 Prototype carbon aero handlebar.
• Groupset: Shimano Dura-Ace Di2 2x12-speed groupset.
• Brakes: Hope RX4+ calipers and Hope road rotors.
• Wheels: Hope RD40 Carbon wheels with Pro5 hubs.
• Tyres: Pirelli Cinturato Gravel H Classic, 700cx35mm.
• Seatpost: LEVEL 3 carbon monocoque seatpost.
• Saddle: Selle Italia SLR Boost 3D Kit Carbonio Superflow 3D-printed saddle.
• Paint Scheme: Frame – brushed finish; fork & cockpit “Ice Marble” – design by Jamie Burrow.
